Exceptional Efficiency
Generate true-color point cloud models in real-time, or acquire 2 km2 of point cloud data in a single flight [1] using the Livox frame Lidar module with a 70° FOV and a visible light camera with a 1-inch sensor.
Unparalleled Accuracy
Render centimeter-accurate reconstructions thanks to the high-accuracy IMU, a vision sensor for positioning accuracy, and the incorporation of GNSS data.
Ready When You Are

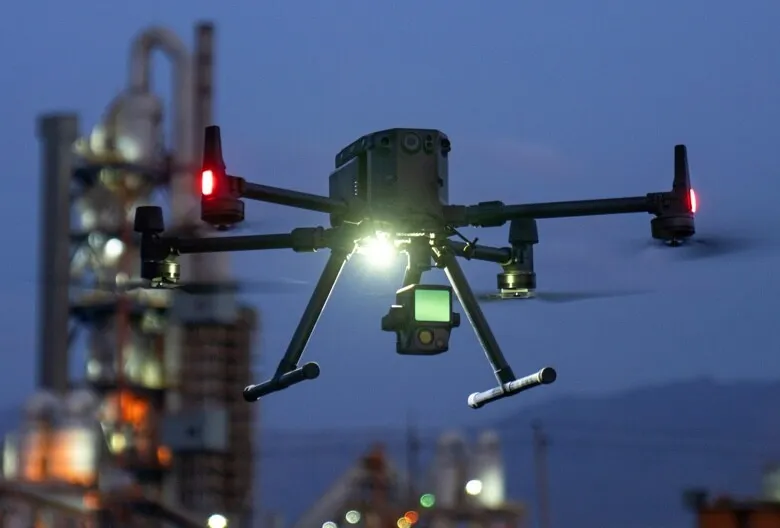

The IP44 rating allows the L1 to be operated in rainy or foggy environments. The Lidar module’s active scanning method enables you to fly at night.

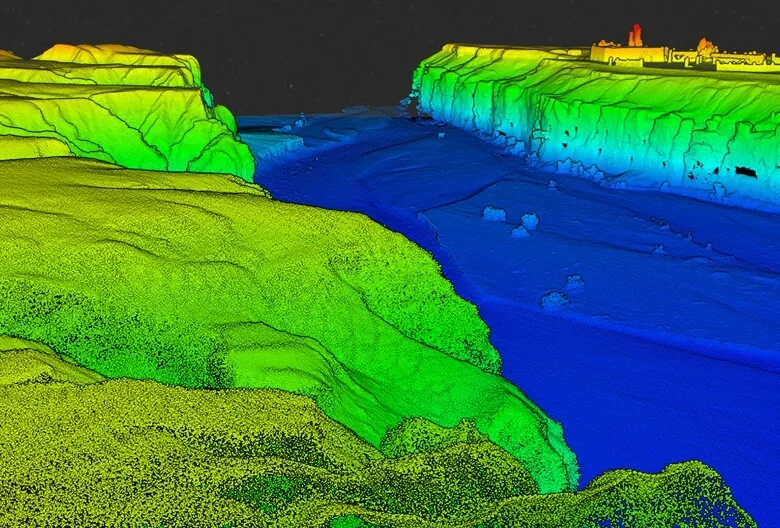

Visualize Data as You Fly
Livox Lidar Module
Frame Lidar with up to 100% effective point cloud results. Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx). Effective Point Rate: 240,000 pts/s. Supports 3 Returns [3]. Line Scan Mode and Non-repetitive Scan Mode
Everything in View
RGB Camera
– 20MP – 1-inch CMOS – Mechanical Shutter
Accurate Details at Your Disposal
High-accuracy IMU
– Accuracy: 0.025° (roll/pitch) / 0.08° (yaw) – Vision Sensor for Positioning Accuracy – GNSS, IMU, RGB Data Fusion
